Objektiv-Spezifikationstabelle

1. Venus/ Saturn Full-frame Anamorphic Lens

MODEL	Venus 35mm T2.9 1.6X	Venus 50mm T2.9 1.6X	Venus 75 mm T2.9 1.6X	Venus 100mm T2.9 1.6X	Venus 135mm T2.9 1.8X	Saturn 35mm T2.9 1.6x Carbon-Fiber	1.25x Adapter
Focal Length	35mm	50mm	75mm	100mm	135mm	35mm	-
Aperture	T2.9-T16	T2.9-T16	T2.9-T16	T2.9-T16	T2.9-T16	T2.9-T16	T2.9
Frame	Full Frame	Full Frame	Full Frame	Full Frame	Full Frame	Full Frame	Full Frame
Mount Options	RF/L/E/Z	RF/L/E/Z	RF/L/E/Z	RF/L/E/Z	RF/L/E/Z	E/DL/RF/X/L	RF/L/E/Z
Lens Structure	18 Elements in 13 Groups	16 Elements in 13 Groups	15 Elements in 13 Groups	15 Elements in 13 Groups	16 Elements in 11 Groups	18 Elements in 13 Groups
Apertute Blades	10	10	10	13	12	10
Shooting Distance	3ft(0.9m)-∞	2.5ft(0.75m)-∞	2.8ft(0.85m)-∞	3ft(0.9m)-∞	3ft(0.9m)-∞	3ft(0.9m)-∞
Focus Method	Manual Focusing	Manual Focusing	Manual Focusing	Manual Focusing	Manual Focusing	Manual Focusing	Manual Focusing
Maximum Magnification	1:22.87(V) 1:40.08(H)	1:12.83(V) 1:20.42(H)	1:10.15(V) 1:15.66(H)	1:8.5(V) 1:13.64(H)	1:5.26(V) 1:9.11(H)
Rotation Angle of the Focus Ring	120°	95.5°	95.5°	100°	120°
Filter Spec	M82 × 0.75	M82 × 0.75	M82 × 0.75	M82 × 0.75	M58 × 0.75	M58 × 0.75	M82 × 0.75
Diameter of the Focus Ring	88mm / 3.46 in	88mm / 3.46 in	88mm / 3.46 in	88mm / 3.46 in	88mm / 3.46 in		85mm
Total Length (Lens Cap Not Included)	117.7mm/4.63in~ 121.1mm/4.63in	140mm/5.5in~ 142.9mm/5.63in	153.5mm/6.02in~ 157.5mm/6.2in	164mm/6.46in~ 157.5mm/6.2in	173mm/6.81in~ 177mm/6.96in	E: 102/4.02 DL: 103/4.06 RF: 100/3.94	46.5-58.5mm
Weight	929g/2.05 Ib~ 971g/2.14 lb	1030.6a/2.27 lb~ 1073.6g~2.37 lb	1365g/3.01 lb~ 1401g/3.09 lb	1477a/3.26 Ib~ 1499g/3.3 lb	1294g/2.85lb~ 1311g/2.89 Ib	E: 415/0.91 DL: 390/0.86 RF: 425/0.94	650g

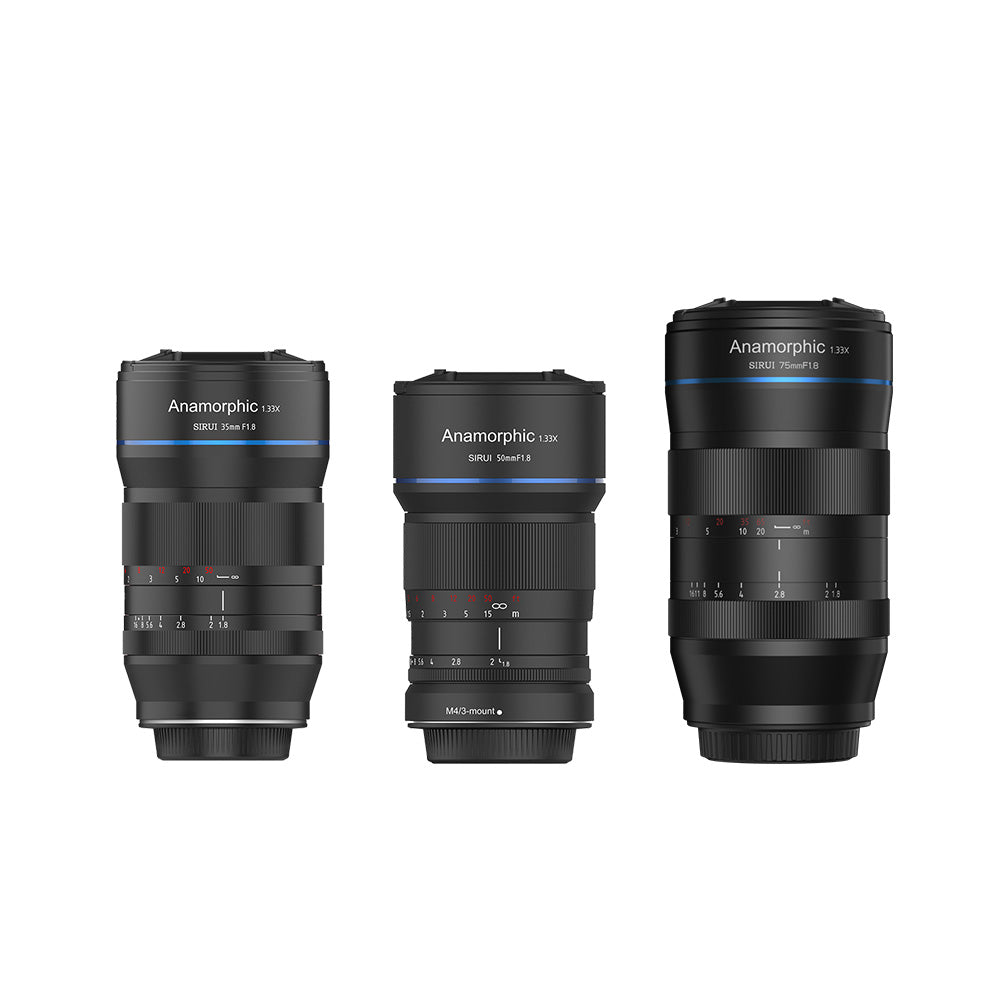

2. APS-C Anamorphic Lens

MODEL	24mm APS-C	35mm APS-C	50mm APS-C	75mm APS-C
Focal Length	24mm	35mm	50mm	75mm
Aperture	F2.8-F16	F1.8-F16	F1.8-F16	F1.8-F16
Frame	APS-C	M4/3	APS-C	APS-C
Mount Options	MFT/E/X/EF-M/Z	MFT/E/EF-M/Z	MFT/E/X	MFT/E/X/EF-M/Z
Lens Structure	13 Elements in 10 Groups	13 Elements in 9 Groups	11 Elements in 8 Groups	16 Elements in 12 Groups
Apertute Blades	8	10	10	13
Shooting Distance	2ft(0.6m)-∞	2.8ft(0.85m)-∞	2.8ft(0.85m)-∞	4ft(1.2m)-∞
Focus Method	Manual Focusing	Manual Focusing	Manual Focusing	Manual Focusing
Maximum Magnification	1:21.99(V) 1:29.07 (H)	1:10.63(V) 13.83(H)	1:15.38(V) 1:20.17(H)	1:14.47(V) 1:18.45 (H)
Rotation Angle of the Focus Ring	189.6°	191.2°	143.6°
Filter Spec	M72 × 0.75	M67 × 0.75	M67 × 0.75	M67 × 0.75
Diameter of the Focus Ring	64.6mm	67.2mm	88mm / 3.46 in	61.7mm
Total Length (Lens Cap Not Included)	124.9mm~128.1mm	117mm	106.6mm	--
Weight	770g~810g	700g	560g	--

3. MARS Anamorphic Lens set

MODEL	24mm T2.9 Anamorphic 1.33X	35mm T2 Anamorphic 1.33X	50mm T2 Anamorphic 1.33X	75mm T2 Anamorphic 1.33X
Focal Length	24mm	35mm	50mm	75mm
Aperture	T2.9-T16	T2-T16	T2-T16	T2-T16
Max Support Frame	M4/3	M4/3	M4/3	M4/3
Mount Options	M4/3	M4/3	M4/3	M4/3
Lens Structure	13 Elements in 10 Groups	13 Elements in 9 Groups	11 Elements in 8 Groups	16 Elements in 12 Groups
Apertute Blades	8	10	10	13
Shooting Distance	2ft(0.6m)-∞	2.1ft(0.64m)-∞	2.8ft(0.85m)-∞	4ft(1.2m)-∞
Focus Method	Manual Focusing	Manual Focusing	Manual Focusing	Manual Focusing
Maximum Magnification	1:21.99(V) 1:28.52 (H)	1:15.59(M) 1:20.01(H)	1:21.18M) 1:27.17(H)	1:14.50M 1:18.49(H)
Rotation Angle of the Focus Ring	287°	303°	296°	283°
Filter Spec	M67 × 0.75	M67 × 0.75	M67 × 0.75	M67 × 0.75
Diameter of the Focus Ring	72.8mm/2.87inches	72.8mm/2.87inches	72.8mm/2.87inches	72.8mm/2.87inches
Total Length (Lens Cap Not Included)	About 130.1mm/5.12inches	About 122.2mm/ 4.81inches	About 118.2mm/ 4.65inches	About 130.8mm/5.15inches
Weight	About 850g/1.87lb	About 803g/1.77lb	About 790g/1.74lb	About 855g/1.88lb

4. Jupiter Series Cine Lens

MODEL	Jupiter 24mm T2 Macro Full frame Cine Prime	Jupiter 35mm T2 Macro Full frame Cine Prime	Jupiter 50mm T2 Macro Full frame Cine Prime	28-85mm T3.2 Full Frame Cine Zoom
Focal Length	24mm	35mm	50mm	28mm-85mm
Aperture	T3.2-T22	T2-T22	T2-T22	T3.2-T22
Frame	Full-frame	Full-frame	Full-frame	Full-frame
Mount Options	PL/EF	PL/EF	PL/EF	PL/EF
Lens Structure	13 Elements in 10 Groups	13 Elements in 9 Groups	11 Elements in 8 Groups	16 Elements in 12 Groups
Apertute Blades	11	11	11	11
Shooting Distance	0.79ft(0.24m)-∞	0.79ft(0.24m)-∞	0.79ft(0.24m)-∞	2.3ft(0.7m)-∞
Focus Method	Manual Focusing	Manual Focusing	Manual Focusing	Manual Focusing
Maximum Magnification	--	--	--	--
Rotation Angle of the Focus Ring	202.4°	200°	220°	259°
Filter Spec	M92 × 0.75	M92 × 0.75	M92 × 0.75	M67 × 0.75
Diameter of the Focus Ring	88mm/3.46inches	88mm/3.46inches	88mm/3.46inches	85.6mm/3.37inches
Weight (kg/lbs) Lens Caps Included	PL Mount 1.247/2.75 EF Mount 1.251/2.76	PL Mount 1.154/2.54 EF Mount 1.137/2.51	PL Mount 1.066/2.35 EF Mount 1.058/2.33	PL Mount: 2.520/5.56 EF Mount: 2.536/5.59
Length (mm/inches) Lens Caps Not Included	PL Mount 103.7/4.08 EF Mount 111.7/4.40	PL Mount 109.3/4.30 EF Mount 117.3/4.62	PL Mount 115.2/4.54 EF Mount 123.2/4.85	PL Mount: 215/8.46 EF Mount:223/8.78
