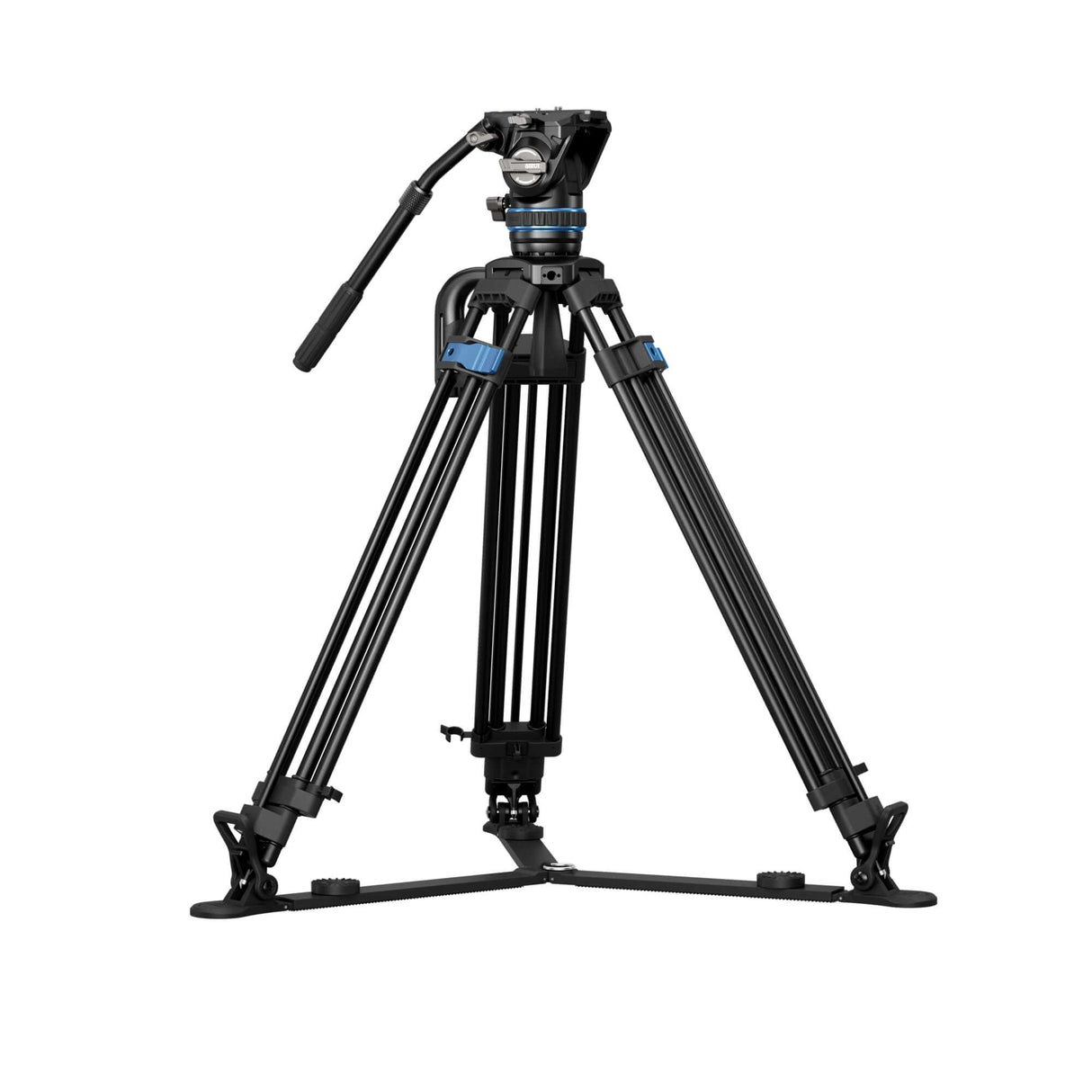

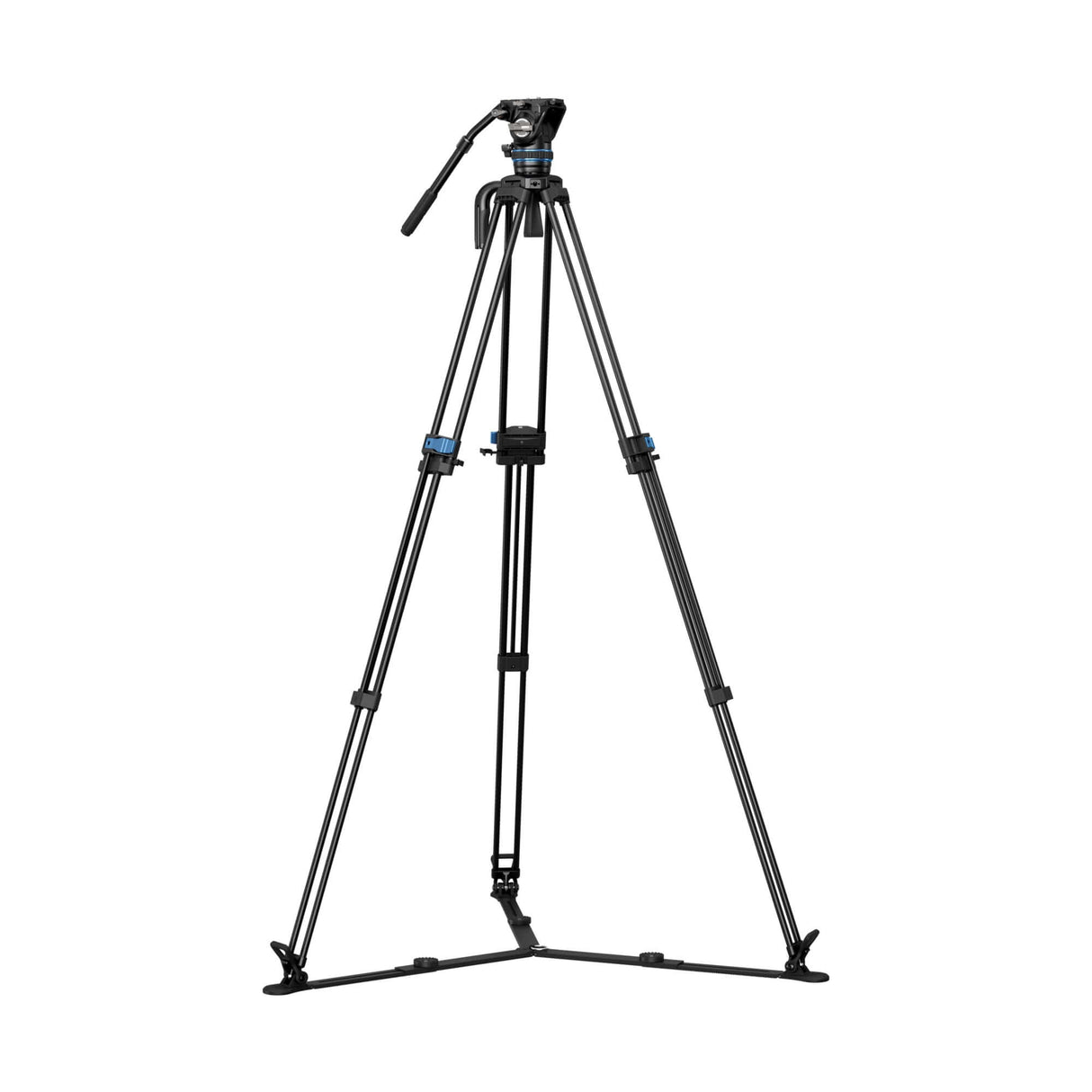

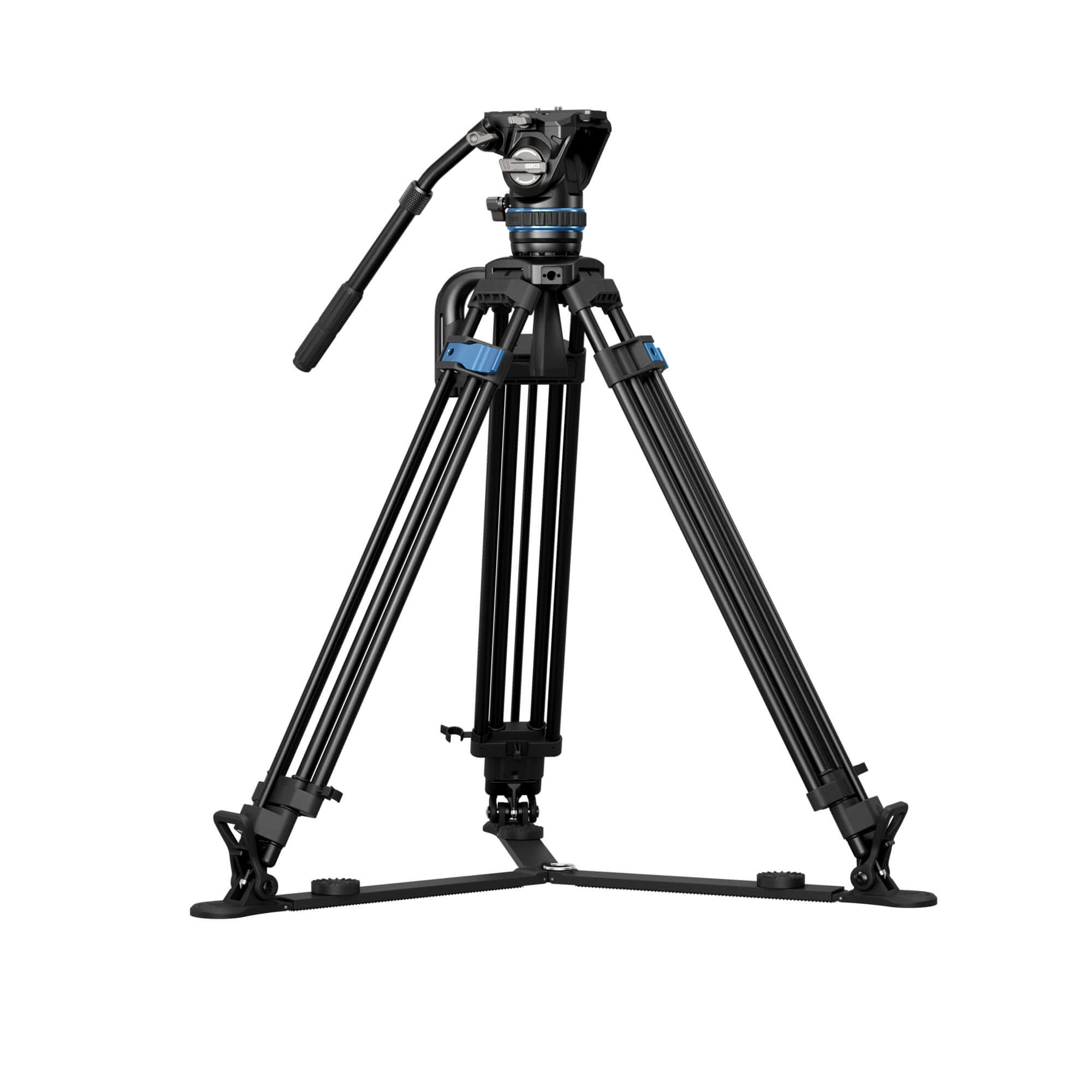

SIRUI SQ75 Carbon Fiber Video Tripod with S5X Hydraulic Fluid Head

SKU: SQ75A+S5X

$199.20 ~~$249.00~~

Shipping calculated at checkout.

Key Features

Model

SQ75+S5X SQ75A+S5X

Product variants

SIRUI SQ75 Carbon Fiber Video Tripod with S5X Hydraulic Fluid Head

Postal code / 邮编

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Rapid System SQ Series

One-Step Adjustment, Master Every Shot

One-Step Height Adjustment Twin-Leg Video Tripod Kit

SQ75A (Aluminum Alloy)+S5X

SQ75 (Carbon Fiber)+S5X

One-Step Height Adjustment

QUICK

Ground Spreader

S5X Video Fluid Head

Adjustable Pan Handle

Fast Switch

Manfrotto/DJI RS Series QR Plate

SV-FM Mid-Level Spreader + Horseshoe Feet

(Optional)

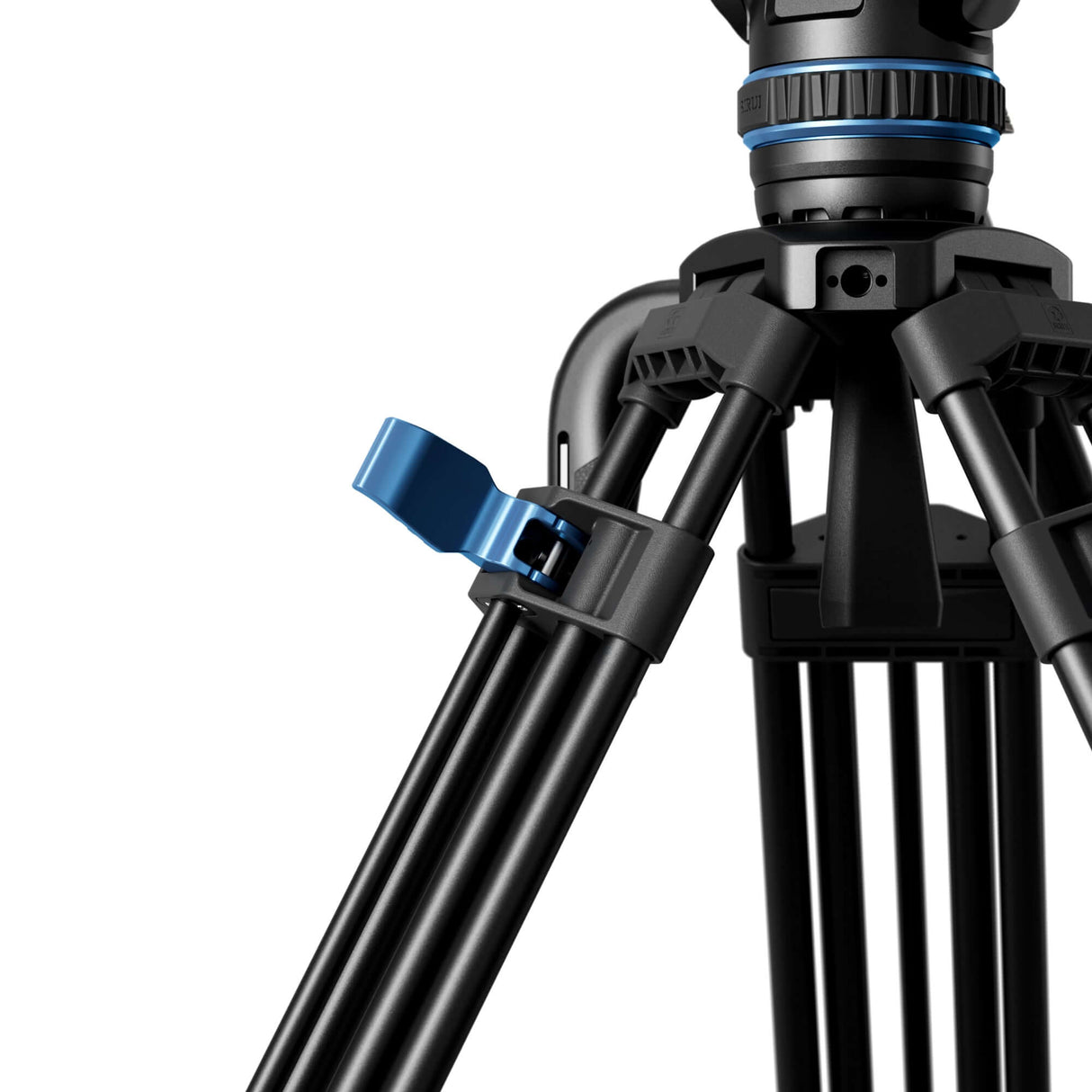

One-Step Height Adjustment

SIRUI’s patented side flip lock mechanism allows you to adjust both leg sections simultaneously with a single flip, ensuring rapid setup and teardown, even with heavy equipment.

Side flip lock design provides comfortable operation experience. The strong locking force further protects your equipment.

Tripod Load Capacity 18kg/39.7lb

Available in carbon fiber or aluminum alloy, this sturdy twin-leg tripod features a maximum tube diameter of 16 mm and supports loads of up to 18kg/39.7lb (kit load capacity: 5kg/11lb), making it ideal for heavy equipment such as RED cinema cameras and other professional imaging gear.

SQ75 Carbon Fiber Tripod

Lightweight and Stable

Weight：3.6kg/7.9lb

（With Ground Spreader）

SQ75A Aluminum Alloy Tripod

Durable and Cost Effective

Weight：3.9kg/8.6lb

（With Ground Spreader）

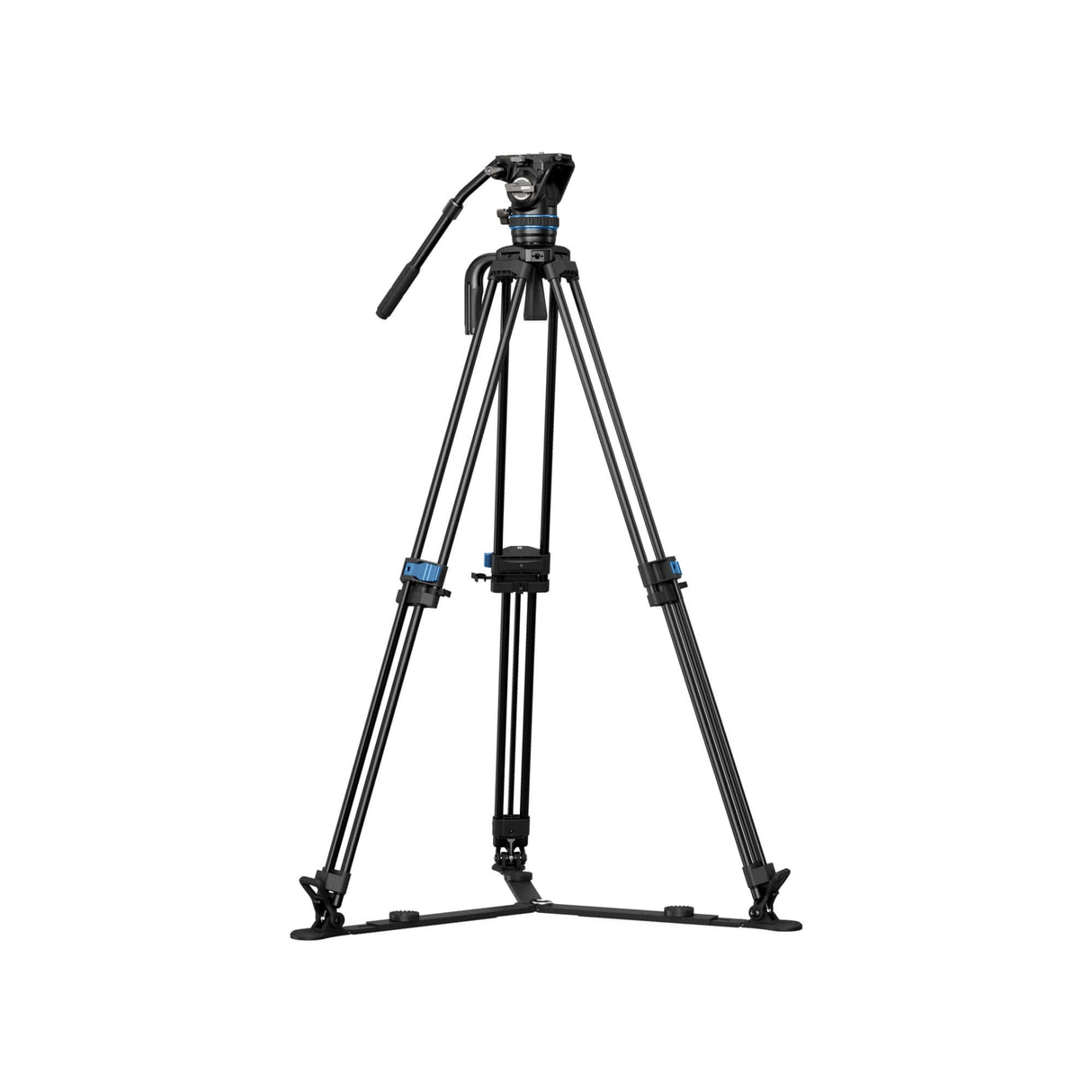

Ground Spreader

Included ground spreader for three points support.

Open

Unlock the knob and then extend or retract the ground spreader leg.

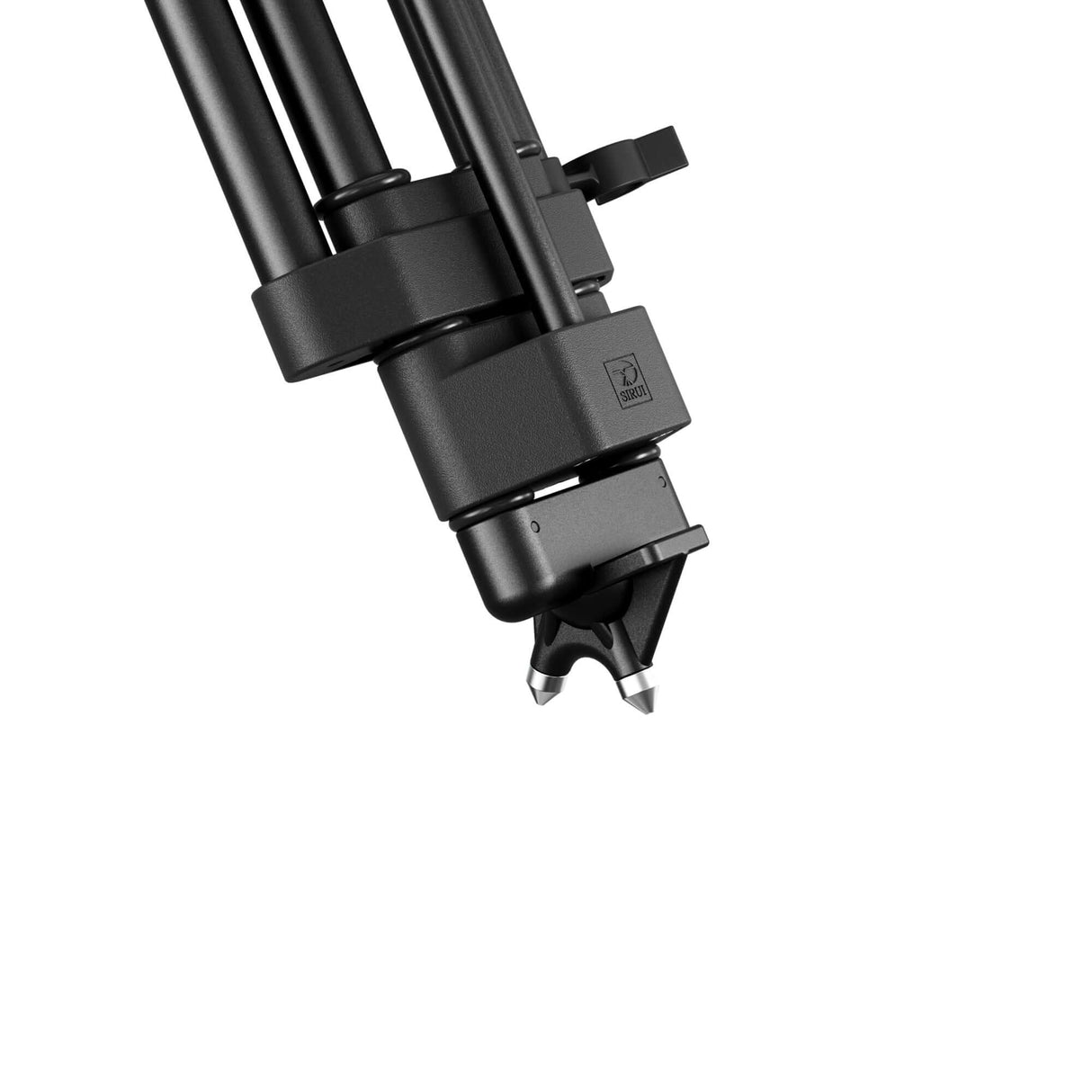

With the ground spreader detached, the tripod is suitable for uneven surfaces.

Height Range (Kit)

Retracted Height

910mm/35.8inch

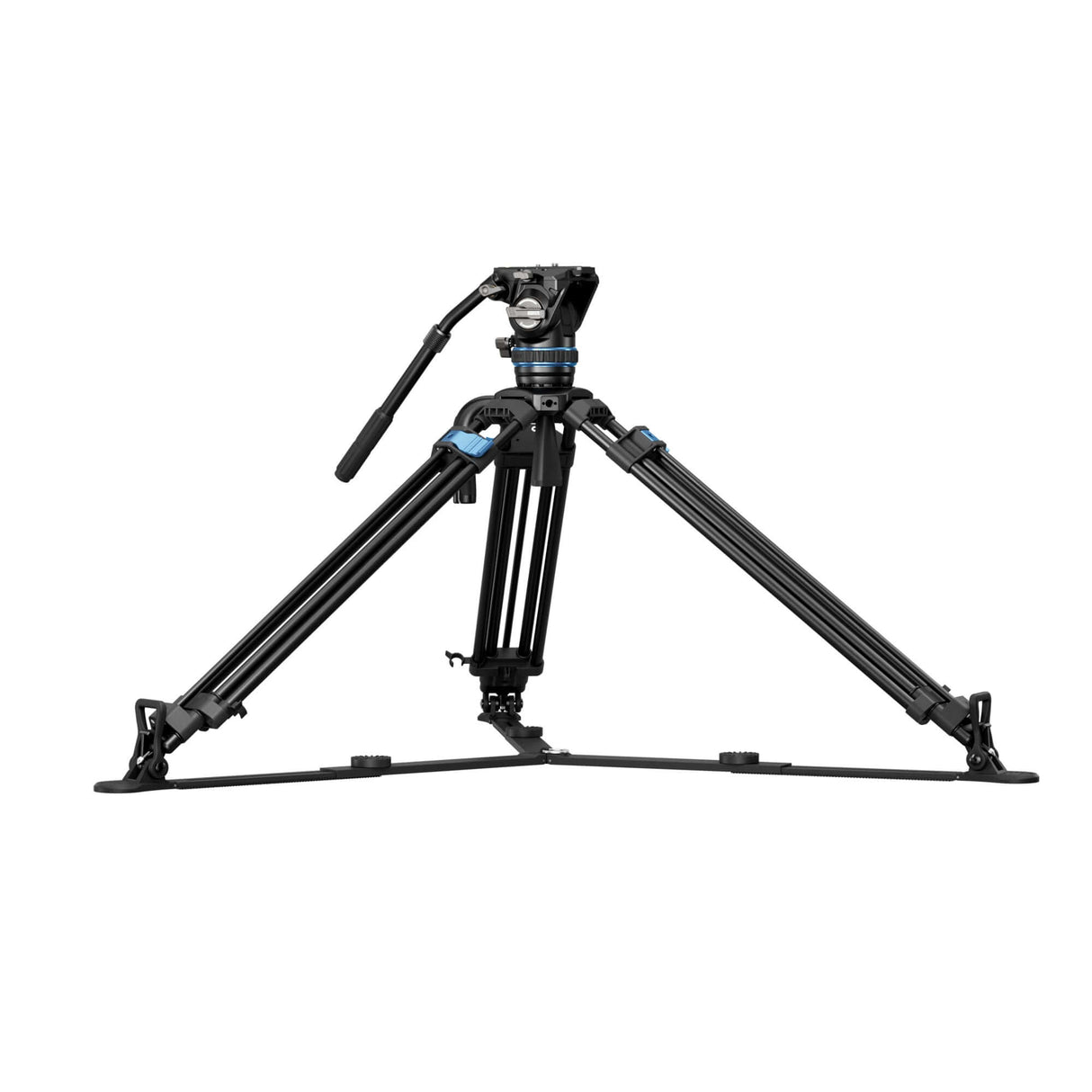

Min Height

665mm/26.2inch

Max Height

1800mm/70.9inch

Setup Steps

Set up the Tripod

Open the Flip Lock

Raise the Tripod

Fasten the Flip Lock

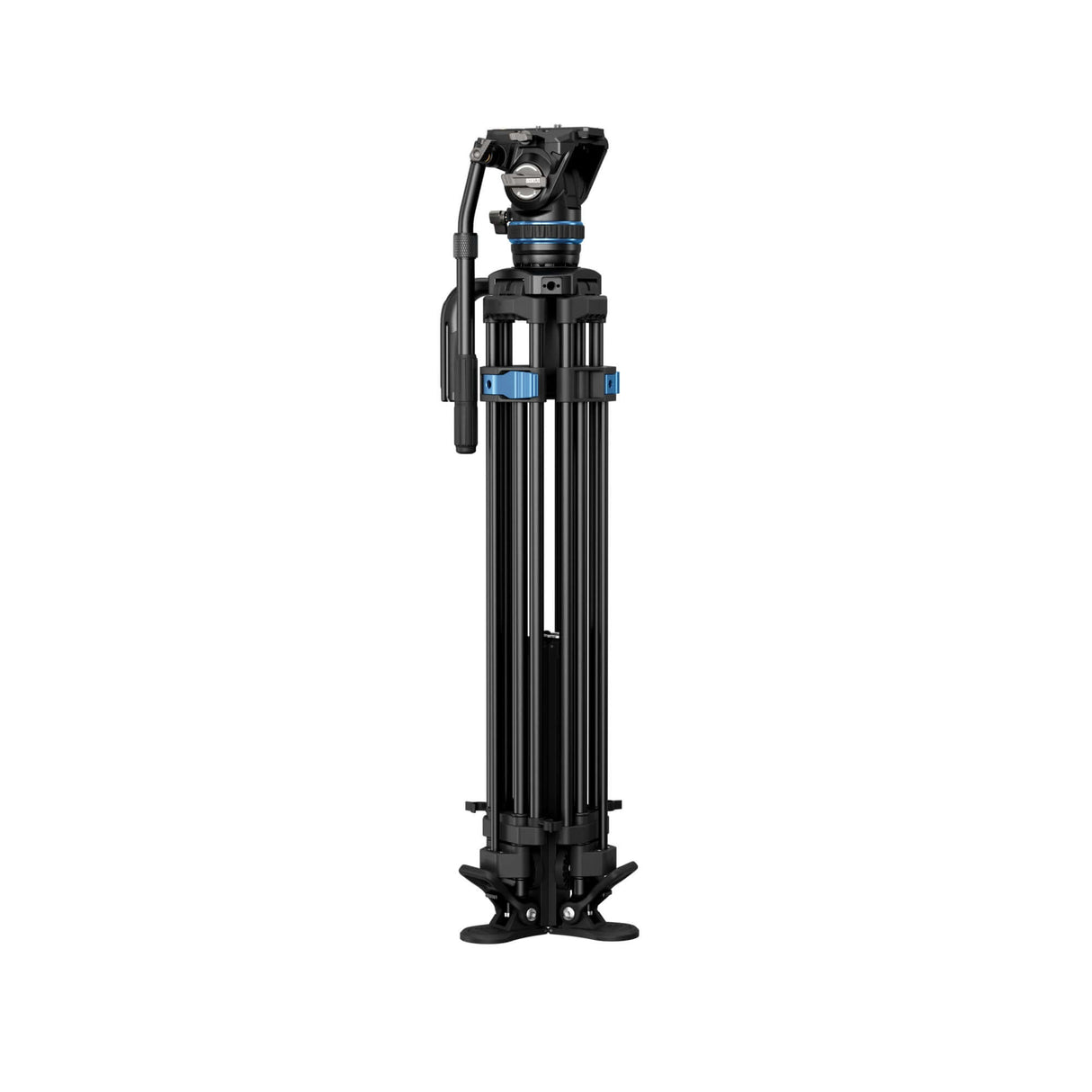

Storage Steps

Retract and Lock the Ground Spreader

Open the Flip Lock

Push the Tripod

Fasten the Flip Lock

Lift the Ground Spreader

Store the Tripod

More Details

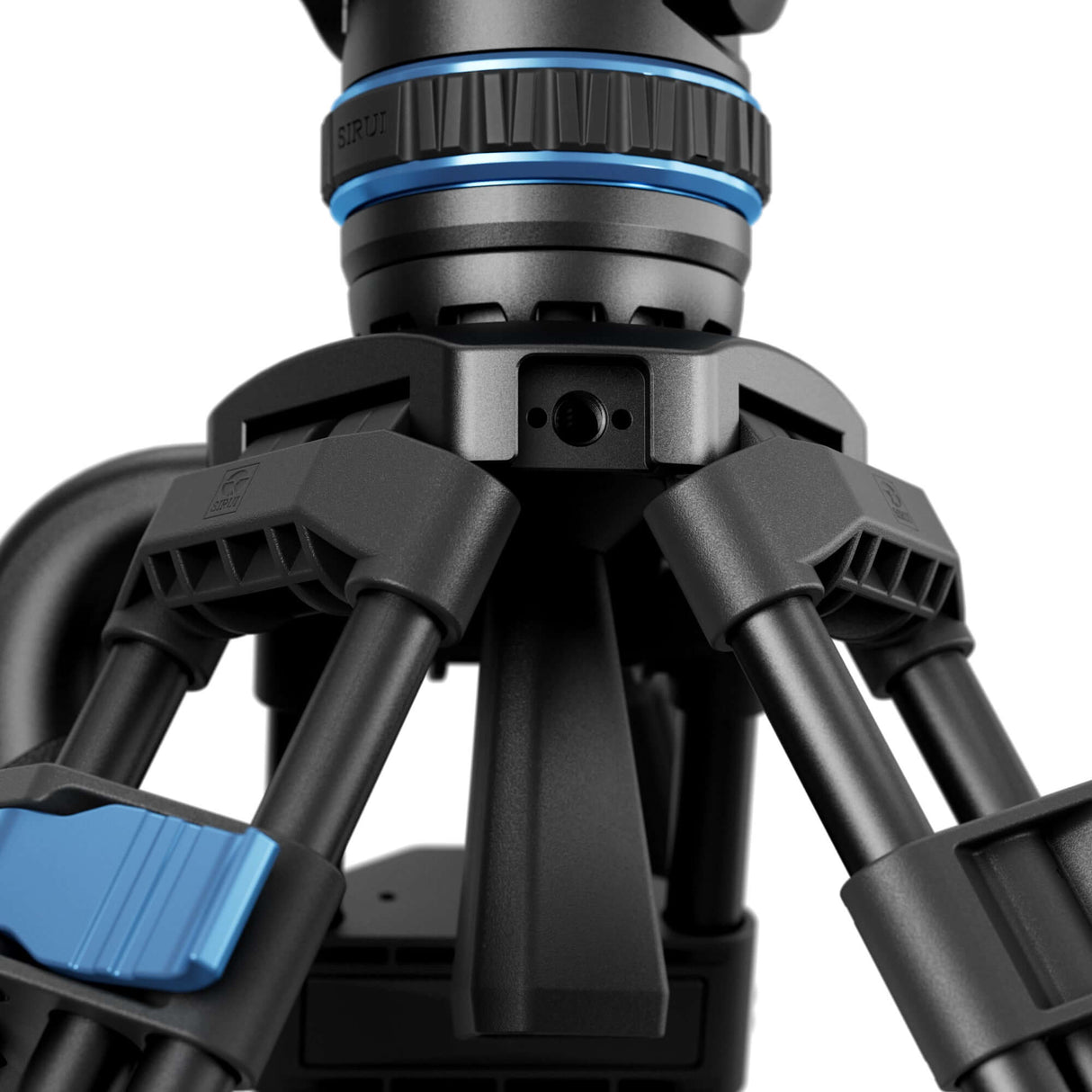

Leg Lock

Built-In Allen Key

S5X Video Fluid Head

The upgraded S5X fluid damping head offers enhanced control and stable performance in harsh weather, with stepless variable friction supporting loads up to 5 kg for easy, precise balance.

Stepless Variable Friction

With stepless variable friction adjustment and a 0–5 kg load range, the S5X head keeps mirrorless and compact video cameras smoothly balanced and firmly held in place.

With Compact Video Camera

Load Capacity

With Mirrorless Camera

Working Temperature

Stable Positioning

-70~+90° Tilting

A wide tilt range enables high- and low-angle shots, with a dedicated tilt lock and stepless friction adjustment ensuring smooth, precise control.

Tilt Lock Knob

360° Panning

Rotate the ring to adjust the panning friction for smooth operation with different equipment weights.

Tighten the locking knob to ensure a fixed shooting angle.

Solid Build Quality

Robust aluminum alloy head for enhanced durability and scratch resistance.

Head Load Capacity

High-Strength Aluminum Alloy

75mm Bowl

Rotate the bowl handle to adjust shooting angles without altering the tripod’s leg height, which is convenient for heavy equipment shooting conditions.

Fast Switch

Easily switch between Manfrotto and DJI RS Series QR plates with a single press for seamless workflow.

With Manfrotto QR Plate

With DJI RS Series QR Plate

Side-Loading QR Plate

Quick installation and fine forward or backward balance adjustment.

Adjustable Pan Handle

Angle adjustable and extendable handle ensures flexible shooting. Retract the handle for easy storage.

Length Adjustment Twist Lock

Angle Adjustment Knob

Wide Compatibility

S5X fluid head is compatible with SIRUI SQ75,
RX series , AR-3204 or other tripod with 75mm bowl.

SQ75+S5X

AR-3204+S5X

R-3213X+S5X

75mm Bowl

1/4”Screw

3/8" Screw

1/4” Threaded Hole

QR Plate Release Button

Handle Lock Dial

Tilt Friction Adjustment Knob

Luminous Bubble Level

Pan Lock Knob

Safety Pin

QR Plate Lock Knob

Adjustable Pan Handle

Handle Angle Adjustment/Lock Knob

Tilt Lock Knob

Allen Key

Length Adjustment Twist Lock

Pan Friction Adjustment Ring

75mm Bowl Adapter

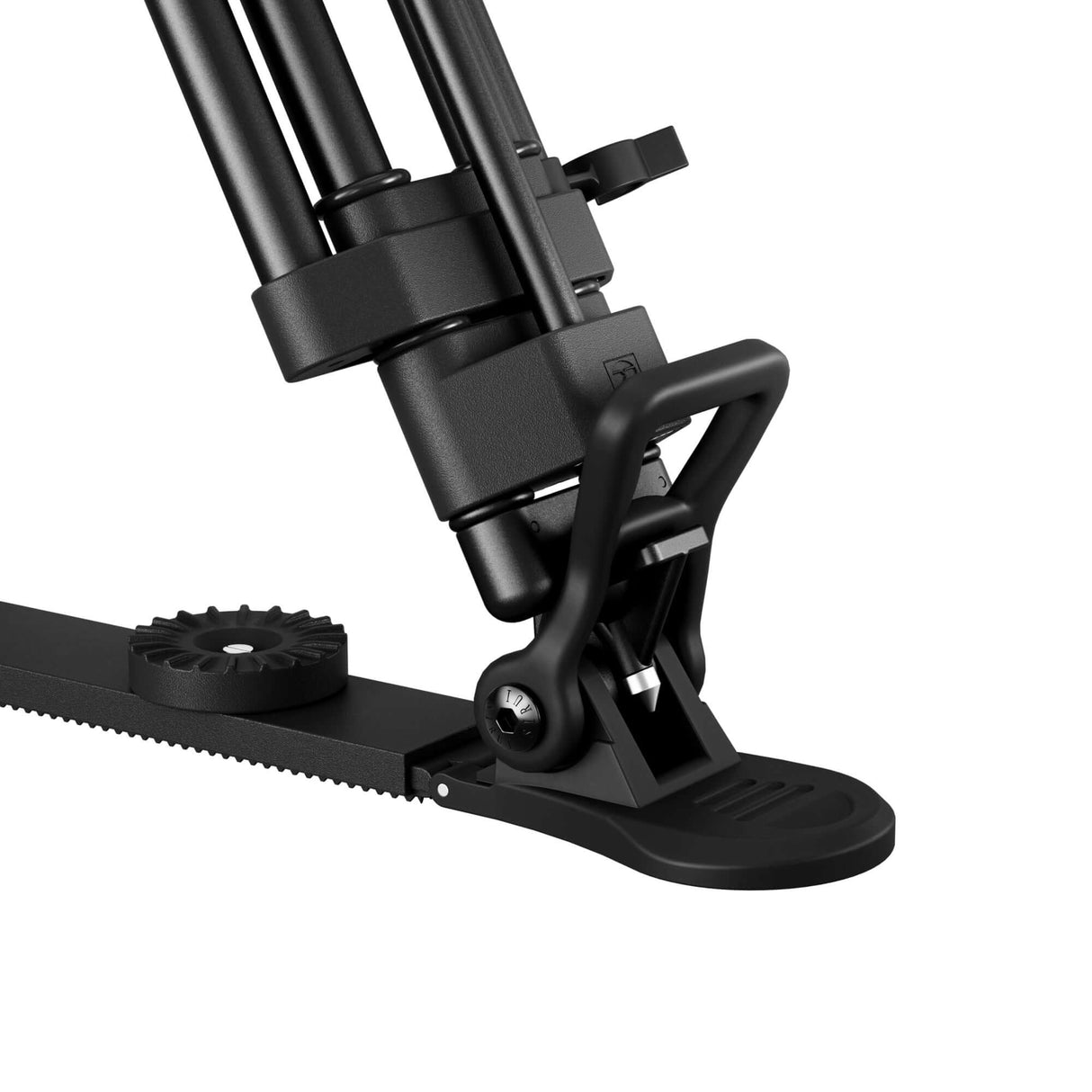

Optional SV-FM Accessory Kit

While the ground spreader is unsuitable for uneven surface such as stairs, we offer the SV-FM accessory kit, which includes a mid-level spreader and three horseshoe feet, ensuring enhanced stability for the tripod on uneven terrain.
